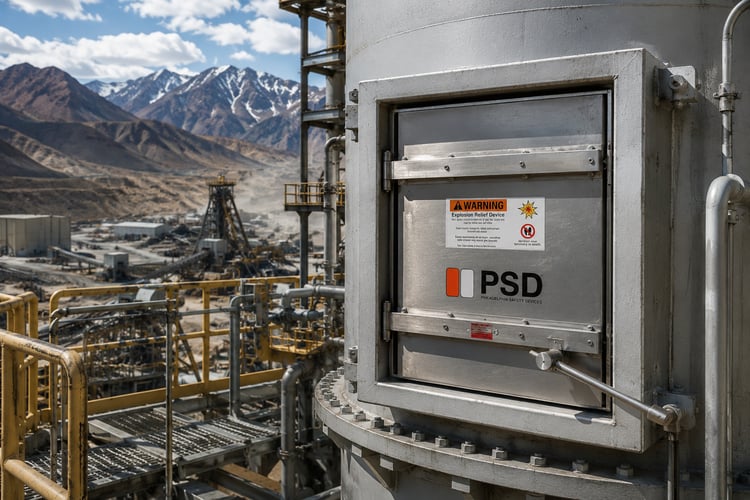

Engineering Explosion Relief Doors for a Nickel Mining Operation

Introduction

Mining operations often expose equipment to some of the harshest operating environments imaginable. Extreme temperatures, corrosive gases, humidity, and continuous operation can significantly reduce the lifespan of standard industrial equipment.

When one of the world's largest nickel producers needed to replace aging explosion relief doors on critical furnace equipment, they required a solution engineered specifically for these demanding conditions.

Philadelphia Safety Devices (PSD) worked closely with the mining operation to design and manufacture custom explosion relief doors capable of delivering reliable performance in an environment where standard solutions simply would not survive.

Project Overview

Client: Major Nickel Mining Operation

Application: Replacement explosion relief doors for nickel processing furnaces

Challenge: Doors and associated components needed to withstand temperatures approaching 1,000°F while resisting corrosion and operating reliably in a humid tropical environment.

Solution: Custom-engineered explosion relief doors, release mechanisms, switches, gaskets, and support components.

Results: Eighty custom explosion relief doors were successfully designed, manufactured, and delivered on schedule.

The Challenge: Designing for Extreme Conditions

The facility's existing explosion relief doors had been operating for approximately fifteen years and were approaching the end of their service life.

Replacing the doors was not as simple as duplicating the original design. During the engineering review process, PSD identified several opportunities to improve performance and longevity based on current operating conditions.

High-Temperature Furnace Operations

The explosion relief doors were installed on furnace equipment exposed to flue gas temperatures approaching 1,000°F.

At these temperatures, material selection becomes critically important. Components that perform well in typical industrial environments may degrade rapidly when exposed to sustained high heat.

The engineering team needed to carefully evaluate:

• Door materials
• Release mechanisms
• Alarm activation systems
• Gaskets and sealing components
• Corrosion resistance requirements

Corrosive Operating Environment

Temperature was only part of the challenge.

The facility's process gases contained sulfur compounds capable of accelerating corrosion when exposed to standard materials. In addition, the tropical operating environment introduced high humidity levels and frequent rainfall.

The combination of heat, moisture, and corrosive gases created an exceptionally demanding application for explosion relief equipment.

Reliable Event Detection

The mining operation also required a dependable method for detecting when an explosion relief door activated.

The facility wanted operators to receive immediate notification whenever a door opened during an overpressure event. However, finding switches capable of operating reliably in extreme temperatures proved difficult.

A custom solution would be required.

Engineering a Custom Solution

PSD worked closely with facility personnel to analyze operating conditions and identify the best materials and components for the application.

Selecting the Right Stainless Steel

A detailed review of process gas composition revealed elevated levels of sulfur compounds within the flue gas stream.

Based on this data, PSD selected 316L stainless steel for the replacement doors.

The material provided:

• Improved corrosion resistance
• Excellent performance in elevated temperatures
• Long-term durability
• Reduced maintenance requirements

Selecting the appropriate stainless steel helped ensure the new doors would provide significantly longer service life in the demanding operating environment.

Designing Components for High Heat and Humidity

The explosion relief doors were only one part of the overall solution.

Supporting components also required redesign, including:

• Alarm switches
• Protective enclosures
• Gaskets
• Mounting assemblies
• Release mechanisms

Each component needed to withstand both elevated temperatures and the humid tropical environment.

Creating a Custom Alarm System

Because conventional switches were not designed for the application, PSD engineered a custom notification system.

The design incorporated:

• A protected switch enclosure
• A specialized activation method
• Weather-resistant construction
• Reliable operation in extreme temperatures

This solution allowed facility personnel to receive immediate notification whenever an explosion relief door opened.

High-Temperature Release Mechanisms

The furnace application also required a specialized release mechanism.

Many magnetic systems lose effectiveness when exposed to prolonged high temperatures. PSD sourced and incorporated specialized high-temperature components capable of maintaining reliable performance despite the demanding operating conditions.

Results

Through close collaboration and detailed engineering analysis, PSD successfully developed a complete explosion relief door solution tailored to the facility's unique requirements.

Eighty Custom Explosion Relief Doors Delivered

The project included the manufacture of:

• Eighty custom explosion relief doors
• High-temperature release mechanisms
• Custom alarm switch assemblies
• Specialized gaskets
• Supporting hardware and enclosures

An initial shipment was expedited to support installation requirements, followed by delivery of the remaining doors later in the project schedule.

Improved Reliability and Longevity

The new explosion relief doors were specifically engineered to address the challenges that affected the original installation.

Key improvements included:

• Enhanced corrosion resistance
• Better high-temperature performance
• Improved component durability
• Reliable event notification
• Reduced long-term maintenance concerns

Delivered On Time and On Budget

Despite the complexity of the project and the unique engineering requirements involved, the doors were successfully manufactured and delivered according to schedule.

The mining operation received a customized explosion relief solution designed specifically for the demanding conditions present within its nickel processing operations.

Why Custom Explosion Relief Doors Matter

Not every industrial application can rely on standard explosion protection equipment.

Facilities operating in:

• Mining
• Metal processing
• Smelting
• Chemical manufacturing
• High-temperature process industries

often require customized solutions based on their unique operating conditions.

Factors such as temperature, pressure, humidity, corrosion, and process chemistry can significantly influence explosion relief door design.

Working with an experienced manufacturer helps ensure equipment is engineered specifically for the environment in which it will operate.
