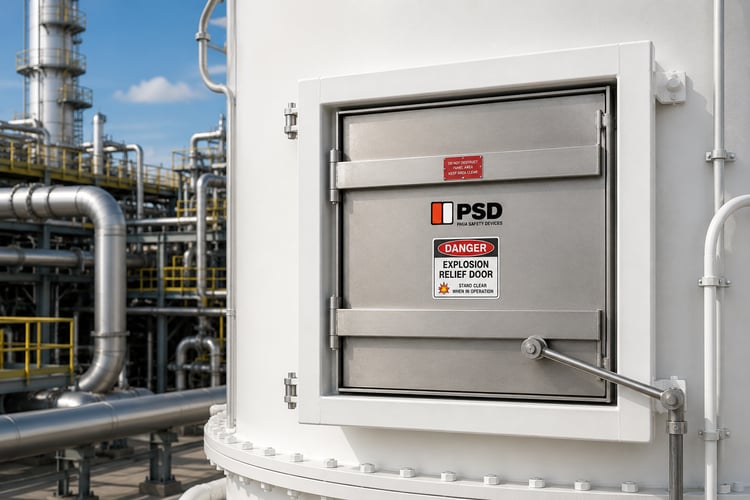

How a Chemical Manufacturer Solved a Critical Explosion Relief Door Challenge

Introduction

When explosion relief doors reach the end of their service life, replacing them is not always straightforward. Original drawings may be missing, equipment manufacturers may have changed ownership, and decades of modifications can make replacement projects surprisingly complex.

A global chemical manufacturer recently faced this challenge when aging explosion relief doors on a critical spray cooling system began leaking. The company needed a reliable solution that would restore performance, maintain safety, and minimize production downtime.

By partnering with Philadelphia Safety Devices (PSD), the facility was able to overcome multiple engineering challenges and successfully replace the aging doors with exact-fit replacements.

The Challenge: Aging Doors on Critical Equipment

The chemical manufacturer operates a large production facility that manufactures specialty chemical products used across numerous industries.

A spray cooler used within the production process relied on two explosion relief doors that had been in service for more than two decades. Over time, the doors began to leak, creating operational concerns and ultimately forcing the facility to shut down part of the production line.

Why the Existing Doors Needed Replacement

The replacement project presented several significant challenges:

• The existing doors were approximately 21 years old.
• Original documentation was difficult to locate.
• The doors utilized a highly customized design.
• Accurate measurements could not be obtained while the equipment was operating.
• Downtime needed to be minimized to reduce production losses.

Operational Risks of Door Leakage

Because the spray cooler operated continuously, obtaining physical measurements of the existing doors was extremely difficult without disrupting operations. Continued leakage also threatened production reliability and increased maintenance concerns.

Why Explosion Relief Door Replacements Can Be Difficult

Many industrial facilities assume replacement is simply a matter of ordering a new door. In reality, explosion relief doors are often engineered specifically for a particular vessel, process, and operating environment.

Missing Drawings and Historical Records

Over decades of service, facilities frequently encounter challenges such as:

• Missing original drawings
• Obsolete equipment manufacturers
• Facility ownership changes
• Modified process conditions
• Custom door configurations

Custom Designs and Non-Standard Applications

When original design information cannot be located, engineering an exact replacement becomes considerably more difficult. This project involved a highly customized door design that differed significantly from standard applications.

The Solution: Leveraging PSD's Historical Design Records

PSD began an extensive review of historical records to determine the origin of the existing explosion relief doors.

Locating the Original Explosion Relief Door Drawings

The investigation revealed an important discovery: PSD had originally supplied the explosion relief doors to the spray cooler manufacturer in 1997.

Because the original drawings were still available, PSD was able to:

• Verify the original design specifications
• Confirm the intended application
• Reproduce the custom configuration
• Manufacture exact replacement doors

Engineering an Exact Replacement

The project also uncovered a critical design requirement. While many explosion relief doors utilize a standard thickness, this application required a specialized 2-inch-thick door assembly that differed significantly from typical designs.

Having access to the original engineering documentation eliminated uncertainty and allowed PSD to provide an exact replacement rather than a best-guess approximation.

Minimizing Downtime Through Careful Planning

Like most manufacturers, the facility needed to limit downtime as much as possible.

Coordinating Installation Around Maintenance Windows

PSD worked closely with plant personnel to coordinate installation activities around scheduled maintenance windows. This approach allowed the company to replace the aging doors without extending shutdown periods beyond what was already planned.

The Value of Keeping a Spare Explosion Relief Door

The project also included manufacturing an additional spare door.

Maintaining a spare explosion relief door on-site provides several benefits:

• Faster replacement during future maintenance events
• Reduced emergency procurement costs
• Shorter production interruptions
• Improved long-term reliability

Results

The project was completed successfully and delivered several important outcomes.

Restored Production Operations

• Exact replacement explosion relief doors were installed
• Production operations resumed safely
• Downtime was minimized

Improved Long-Term Reliability

• A spare door was provided for future maintenance needs
• Facility personnel received maintenance guidance
• The manufacturer engaged PSD for additional explosion relief door projects

The Value of Long-Term Engineering Records

This project highlights an often-overlooked advantage of working with an experienced explosion relief door manufacturer.

Facilities frequently operate equipment for 20 years or more. Having access to original engineering records can dramatically simplify future maintenance, refurbishment, and replacement projects.

PSD's decades of experience and historical design archive allow facilities to obtain exact replacement explosion relief doors even when original documentation appears to be lost.

Need an Exact Replacement Explosion Relief Door?

If your facility is dealing with aging explosion relief doors, missing drawings, leaking equipment, or custom applications, PSD can help.

Our team specializes in custom-engineered explosion relief doors, replacement doors, refurbishment services, and calibration support for chemical processing, food manufacturing, grain handling, pharmaceutical production, and other industrial applications.

Contact PSD today to discuss your application and replacement requirements.
