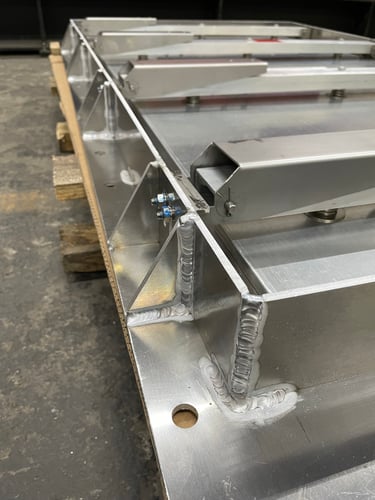

How to Choose the Right Explosion Relief Door for Your Application

Selecting the correct explosion relief door is not a one-size-fits-all decision. The number of doors, their size, and their preset opening pressure must be engineered specifically for your process and equipment.

Choosing incorrectly can mean insufficient pressure relief — or unnecessary overspending on oversized protection. The right solution balances safety, compliance, and operational efficiency.

Here’s what determines which explosion relief door you need.

1. How Susceptible Your Materials Are to Combustible Dust Events

Some materials ignite easily and generate high-pressure deflagrations. Others present lower risk profiles.

Key considerations include:

• Kst value (rate of pressure rise)
• Pmax (maximum explosion pressure)
• Minimum ignition energy
• Particle size and moisture content

If your material has a high Kst value and produces rapid pressure rise (dp/dt), you may require:

• Larger vent area
• Faster-acting relief systems
• Lower preset opening pressure

Higher-risk materials demand more responsive protection.

2. The Volume of the Protected Vessel or Piping

The larger the enclosure, the more expanding gases must be relieved.

Factors include:

• Vessel cubic volume
• Duct length and diameter
• Interconnected process equipment

Larger volumes typically require:

• Greater total vent area
• Multiple explosion relief doors
• Strategic placement for balanced pressure release

Explosion protection calculations are based heavily on vessel geometry and internal volume.

3. Structural Strength of the Containment

Every vessel has a maximum allowable internal pressure before structural failure.

If the vessel is relatively weak, doors must:

• Open at lower preset pressures
• Relieve pressure earlier in the event
• Provide sufficient vent area to keep reduced explosion pressure (Pred) below structural limits

Stronger vessels may tolerate slightly higher reduced pressures, which can influence sizing and quantity.

Protection is not just about the explosion — it’s about what the vessel can survive.

4. Typical Dust Concentration in the Process Area

Explosion severity depends heavily on dust concentration.

If your process frequently operates within explosive concentration ranges, risk increases. Systems with intermittent dust accumulation may have different requirements than systems running continuously at high concentrations.

Higher concentration potential generally means:

• Greater explosion severity
• Larger or additional doors
• Lower opening set points

Understanding your process conditions is critical to correct specification.

5. Opening Pressure Requirements

Explosion relief doors can be preset to open at specific pressures. Lower opening pressures:

• Reduce peak internal pressure
• May reduce required vent area
• Provide earlier event mitigation

However, preset pressures must be balanced against normal process operating pressures to prevent nuisance opening.

This is why precise calibration and engineering review are essential.

Why Engineering Calculations Matter

Explosion protection design typically follows standards such as NFPA 68 and requires:

• Deflagration venting calculations
• Reduced explosion pressure (Pred) analysis
• Vent panel density considerations
• Equipment strength verification

The correct explosion door is determined through engineering — not guesswork.

So, Which Explosion Door Do You Need?

The answer depends on:

• Your material explosibility characteristics
• Vessel volume and geometry
• Structural strength of your equipment
• Normal operating pressures
• Process dust concentration

In many cases, multiple doors of specific sizes and preset pressures are required to properly protect a single piece of equipment.

The safest and most cost-effective solution is always one that is calculated for your exact application.

Final Thought

Explosion relief doors are engineered safety devices. Proper sizing and specification protect not only your equipment, but also your people and facility.

If you are unsure which explosion relief door is right for your process, a technical review of your vessel data and material characteristics is the first step toward making the right decision.
